PowerBully 18T

track carrier
for utility demands

PowerBully 18T is a high performance track carrier with best in class off road abilities. With its high payload of 16,6 t and ultra low ground pressure, it's the perfect solution for operations in impassable, hard-to-access areas. The PowerBully 18T offers safety for working tools, equipment, material and personnel transport on soft, swampy ground. Mounting superstructures is simple and straightforward thanks to the standard interfaces. The PowerBully 18T is easy to maintain and offers easily accessible service points on the machine. In addition, the vehicle is telemetry-capable.

Highlights

Geräteträger mit jeder Menge Kraft: Der neue PowerBully 18T aus dem Hause Kässbohrer!
PowerBully 18T LED Lichtpaket
Safety and visibility

LED lights

The PowerBully 18T has LED work lights on the front and rear. For better visibility and safe, comfortable work at night or in adverse weather conditions.

PowerBully 18T Fahrerkabine
Comfort and safety

Driver's cabin with integrated ROPS/FOPS

The operator's cab is ROPS/FOPS certified and offers the operator practical features that ensure safety, comfort and efficiency.

Telemetry of PowerBully 18T

Telemetrie

The PowerBully 18T is the first utility vehicle equipped with telemetric features. This enables a real time viewing of components, GPS tracking and remote access.

Der PowerBully 18T ist der innovativste Geräteträger am Utility-Markt.
PowerBully 18T QuickMountChassis
Quick and easy upfitting of superstructures

QuickMount Chassis

With a standard truck frame width of 34" (864 mm) and hydraulic and electronic interfaces, attachments such as cranes, drills or platforms can be mounted faster.

PowerBully 18T X-Track Kette
Stability and grip on steep hillsides

X-Track

The X-Track chain with cleated construction and track profile with herringbone pattern provides strong grip on steep and muddy slopes. The off-road ability of the PowerBully 18T makes it suitable for operations in rough, hard-to-reach areas.

Cummins B 6.7 Engine
Reliable 310 HP Cummins engine

Cummins B6.7 Engine

High torque at low revs provides the punch needed with low noise and excellent fuel economy.

Das Cockpit des Geräteträgers PowerBully 18T
PowerBully 18T Kabine mit Panorama-Sicht
Safety and comfort

Panoramic view

The driver's cab  in combination with the rear view camera offers the driver an excellent panoramic view – both during the journey and when using the mounted equipment.

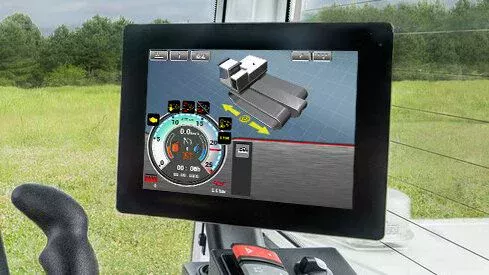

PowerBully 18T: iTerminal
Easy operation

iTerminal with integrated touch screen

10-inch display with touch control. Clear and easy to use. All active vehicle parts are highlighted in color. With quick navigation option via icons.

Steering

Opt for control via an adjustable steering wheel or use the ergonomic dual joystick! Both types of control are electronically supported.

Air conditioning

The air conditioning system in the cockpit provides the driver with a pleasant working climate and, in winter, unshod windows thanks to the air-dehumidifying effect.

PowerBully 18T Technische Zeichnung mit Abmessungen: Front

Dimensions:

Overall length standard: 8.228 mm (324")
Overall width: 3.077 mm (121")
Overall height: 3.395 mm (134")
Ground clearance: 600 mm (102")

Shipping width without tracks: 2.590 mm (102")

PowerBully 18T Technische Zeichnung mit Abmessungen: Front

Technical data

Weight
Tare weight with X-tracks13,200 kg
Gross weight limit30,000 kg
Payload on platform16,600 kg
Overview Off-Road abilities
Uphill / downhill31° (60%)
Sidehill21° (40%)
Turning radiuson the spot
Slope angle front / back19° / 22°
Fording depth1,400 mm
Ground pressureNo
penetration
150 mm
penetration
No load (kg/cm²)0,1740,134
max. Load (kg/cm²)0,3970,305
Interfaces for vehicle attachments
Mechanical888 mm truck style chassis
HydraulicFull engine power available
Electric12V/120V or 24V/240V battery system available

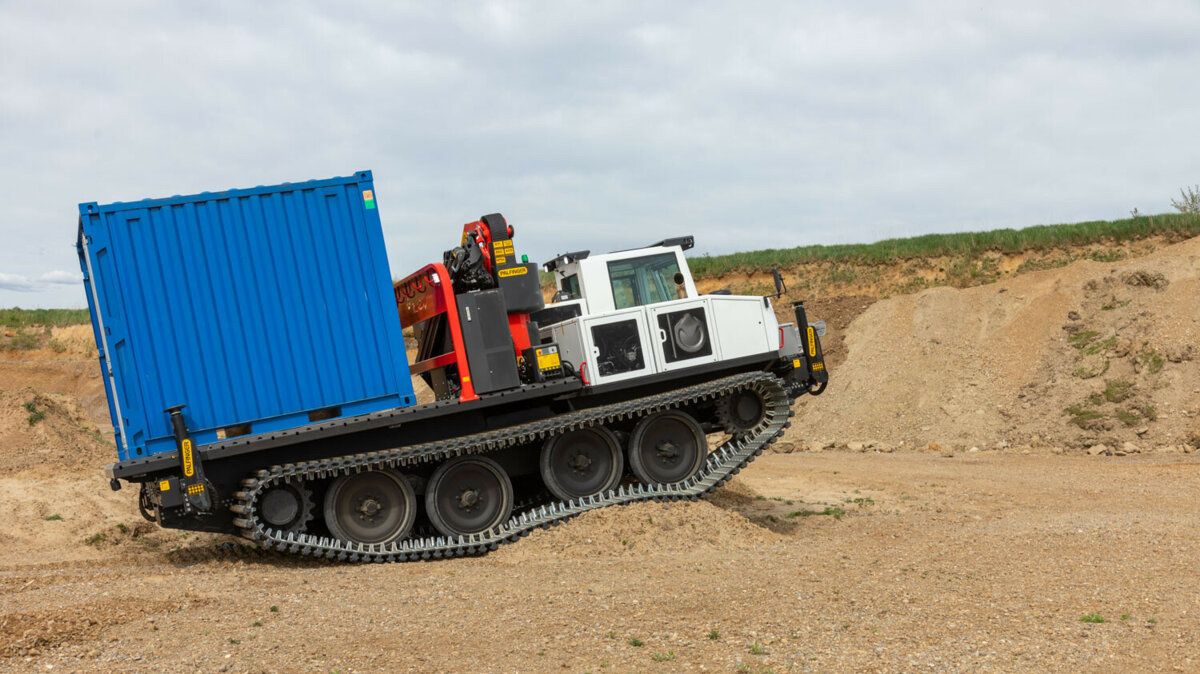

PowerBully 18T am Steilhang
PowerBully 18T Zeichnung des Motors
Engine and hydraulics
TypeCummins B6.7 Turbo Diesel
No. of cylinders6
Displacement6.7 l / 6,700 ccm
Power (ECE)231 kW (310 hp) @ 2200 rpm
Emission standardTier 4f / EU Stage 5
max. Torque1,288 Nm @ 1.500 rpm
Hydraulic drive trainBosch Rexroth
Tanks350 l fuel, 38 l DEF,
40 l hydrostatic tank
Characteristics
max. Speed13 km/h
Weight
Tare weight with X-tracks29,100 lbs
Gross weight limit66,140 lbs
Payload on platform36,600 lbs
Overview Off-Road abilities
Uphill / downhill31° (60%)
Sidehill21° (40%)
Turning radiuson the spot
Slope angle front / back19° / 22°
Fording depth55"
Ground pressureNo
penetration
6"
penetration
No load (PSI)2,41,9
max. Load (PSI)5,64,3
Interfaces for vehicle attachments
Mechanical34,9" truck style chassis
HydraulicFull engine power available
Electric12V/120V or 24V/240V battery system available
PowerBully 18T am Steilhang
PowerBully 18T Zeichnung des Motors
Engine and hydraulics
TypeCummins B6.7 Turbo Diesel
No. of cylinders6
Displacement 6,700 ccm
Power (ECE)231 kW (310 hp) @ 2200 rpm
Emission standardTier 4f / EU Stage 5
max. Torque1.288 Nm @ 1.500 rpm
Hydraulic drive trainBosch Rexroth
Tanks92.5 US gal fuel, 10 US gal DEF,
10.6 US gal hydrostatic tank
Characteristics
max. Speed8.1 mph

Telemetry

As an absolute first in the utility vehicle market, the PowerBully 18T is the only vehicle worldwide to feature interfaces that enable fleet management.

Using the data, operations managers can see, for example, whether a vehicle needs oil or at what speeds it is being driven. Rental companies can see where and how long their vehicles are in use. The connectivity of the PowerBully 18T is particularly beneficial for service. Via remote data transmission, the service technician can dial into the respective vehicle in advance and read out numerous service and maintenance parameters as well as specific operating data. This saves time and money when servicing is required.



PowerBully 18T: Das weltweit erste Nutzfahrzeug mit Telemetrie

features

PowerBully 18T Fahrerkabine von innen

Drivers' cabin

The PowerBully 18T's one-man cab is ROPS/FOPS certified and includes numerous features that ensure safety, comfort and efficiency on the job: Air conditioning, radio, ergonomic seat, and much more.

PowerBully 18T | Kabine mit  iTerminal

iTerminal

On the iTerminal with intuitive touchscreen, you can see important information about the vehicle status, your position and that of your equipment carrier.

PowerBully 18T - Leistungsstarkes Lichtpaket Detail

LED light package

The PowerBully 18T has a powerful light package out of the box with halogen spotlights front and rear for better visibility and comfortable, safe work at night.

PowerBully 18T Steuerung über Lenkrad oder Sticks

Steering

Opt for control via an adjustable steering wheel or use the ergonomic dual joystick! Both types of control are electronically supported.

PowerBully X-Track Kette

X-Track

The X-Track rubber track convinces with unbeatable performance: The profile with herringbone pattern provides the best grip, with even the steepest, muddy slopes are conquered. At the same time, it exerts minimal pressure on the ground and thus protects the terrain.

PowerBully 18T Stahlkette

Steel track

The closed web profiles are made of high-strength, low-wear fine-grained steel. The sharp profile edge makes perfect use of its very good piercing behavior even on hard ground. The generous spike arrangement gives the steel chain good climbing and lateral holding properties. The steel chain is designed for high thrust performance when used in steep terrain and on icy or rocky ground.

  • Rear view camera
  • Front headlights LED (working lights, low beam and high beam)
  • Air-suspended, heated seat
  • Trailer hitch (total towing weight max. 16,700 kg)
  • Combox

Options for cold weather

  • Feed pressure reduction
  • Cooling water heating
  • Hydraulic oil heating
  • Heated rear view mirror
  • Heated fuel filter
  • Heated windows
  • Parking heater
