DUmper

PowerBully dump trucks

Track carriers

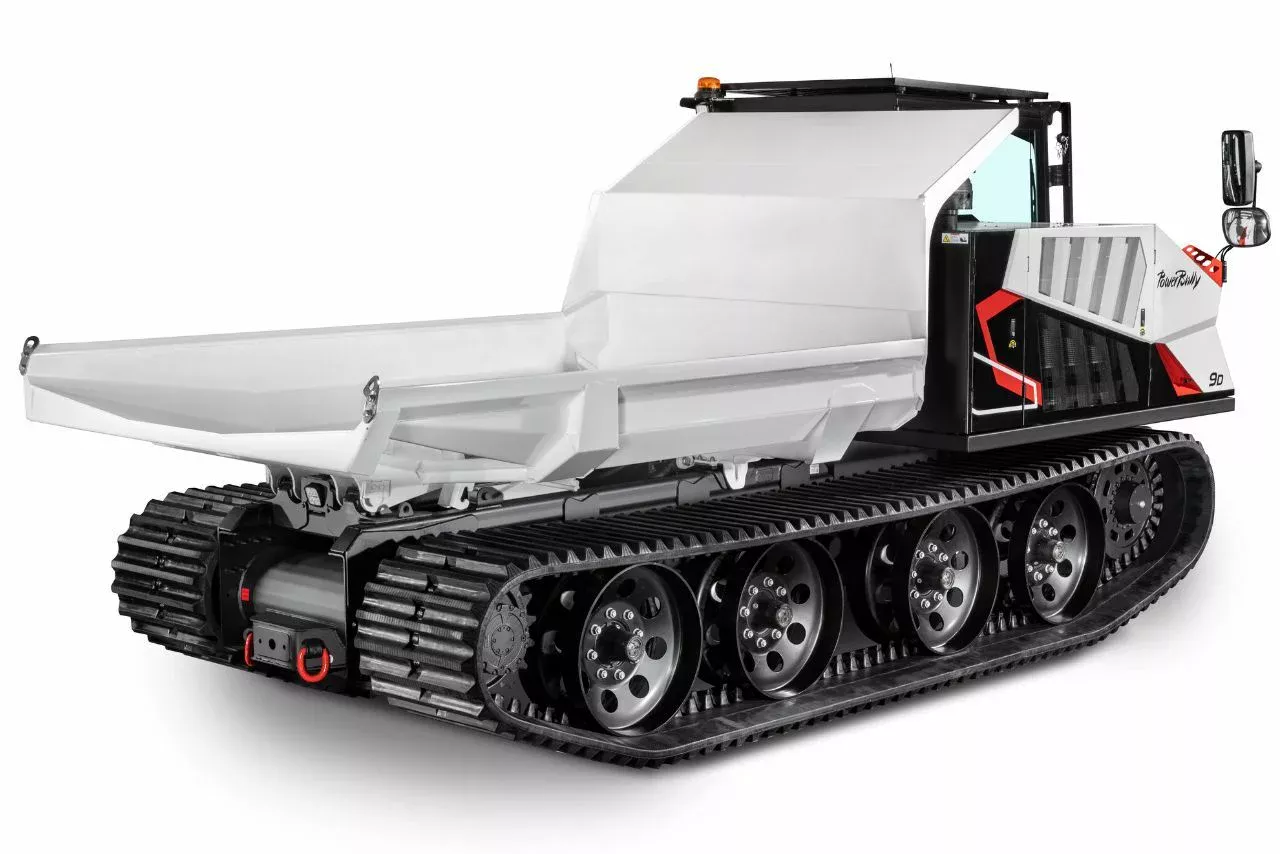

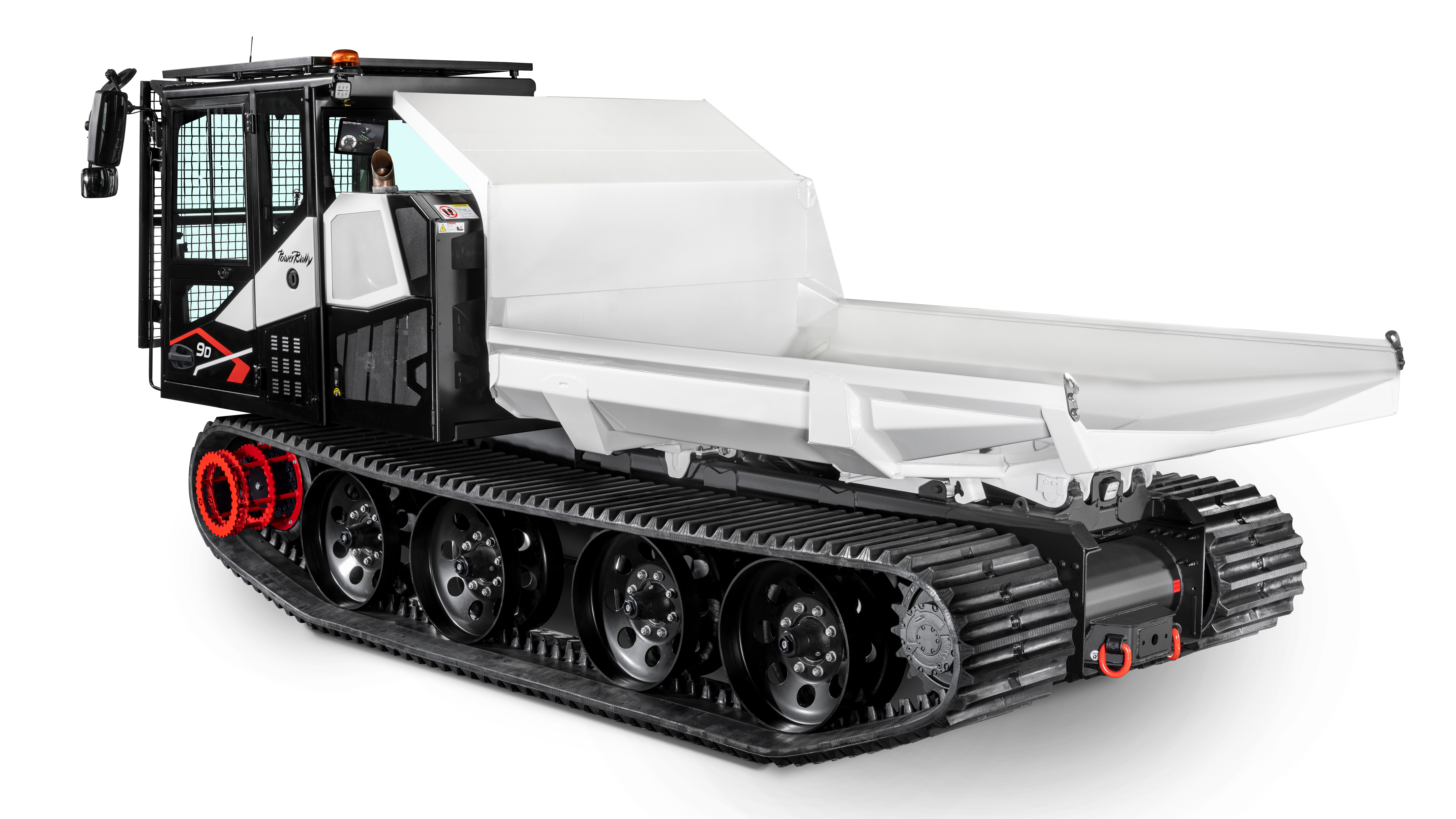

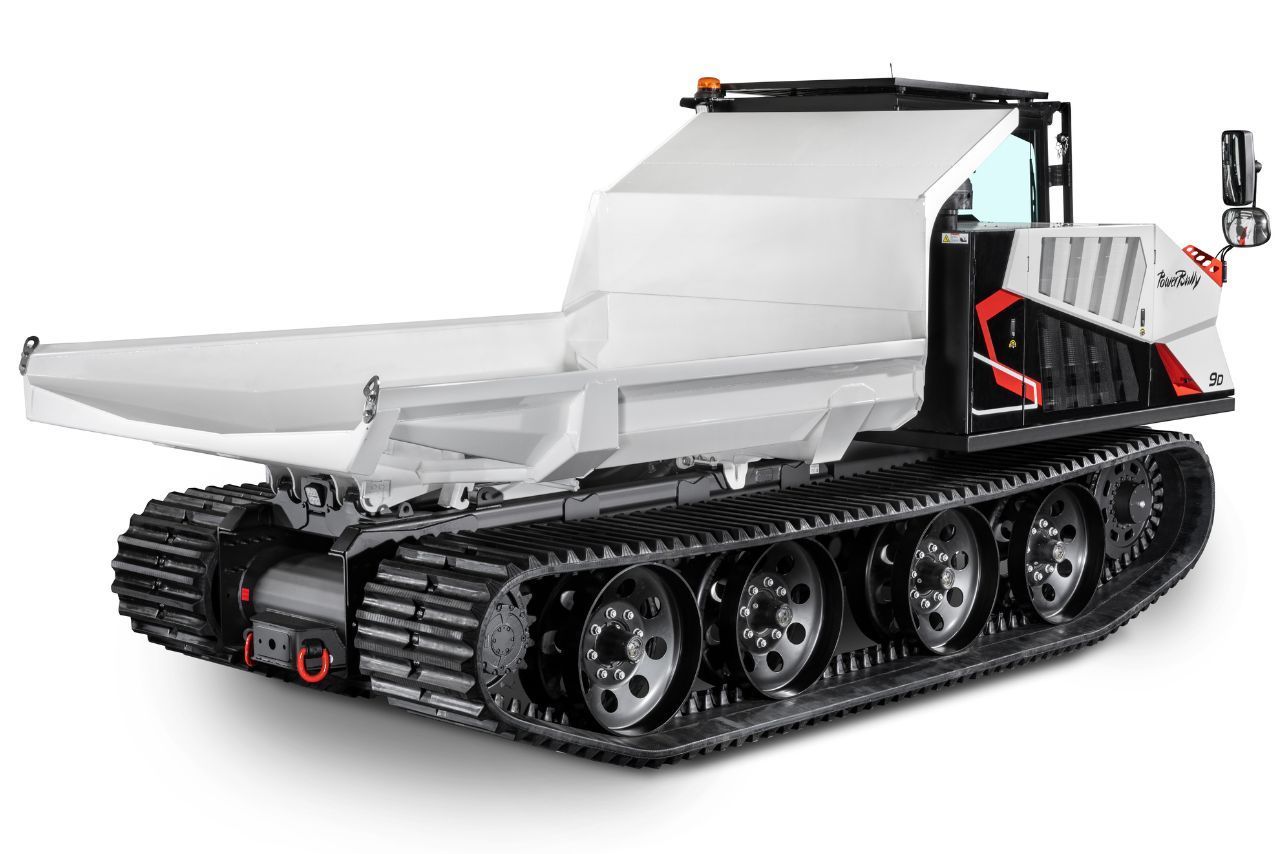

PowerBully 9D

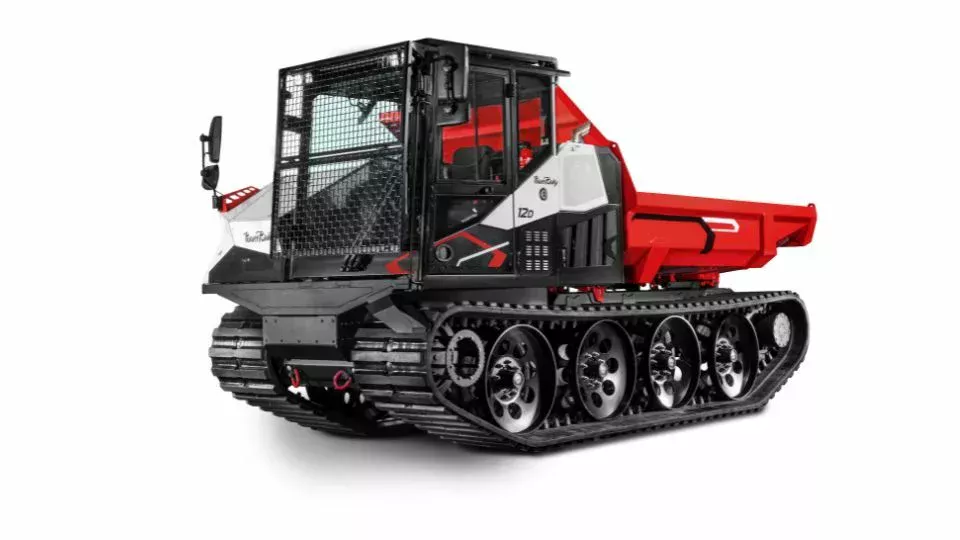

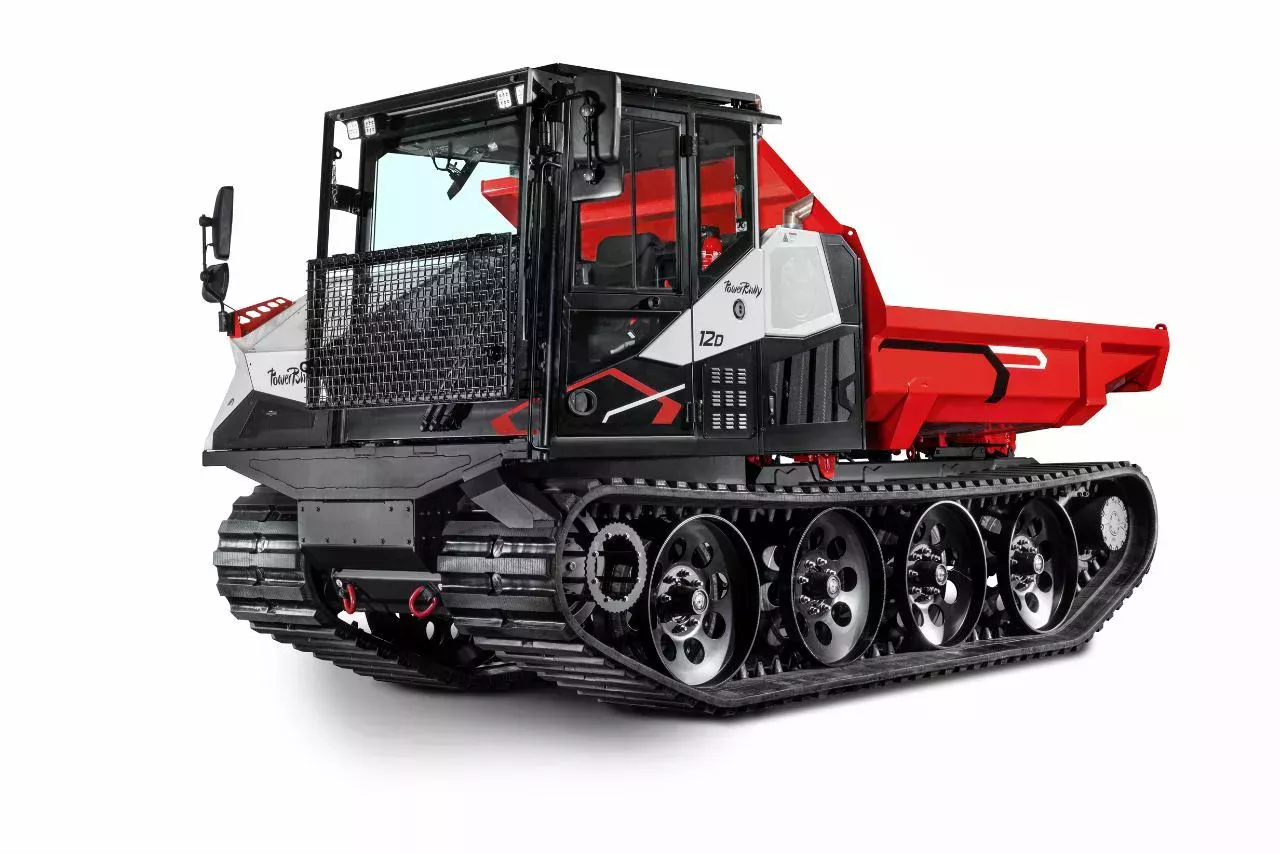

PowerBully 12D

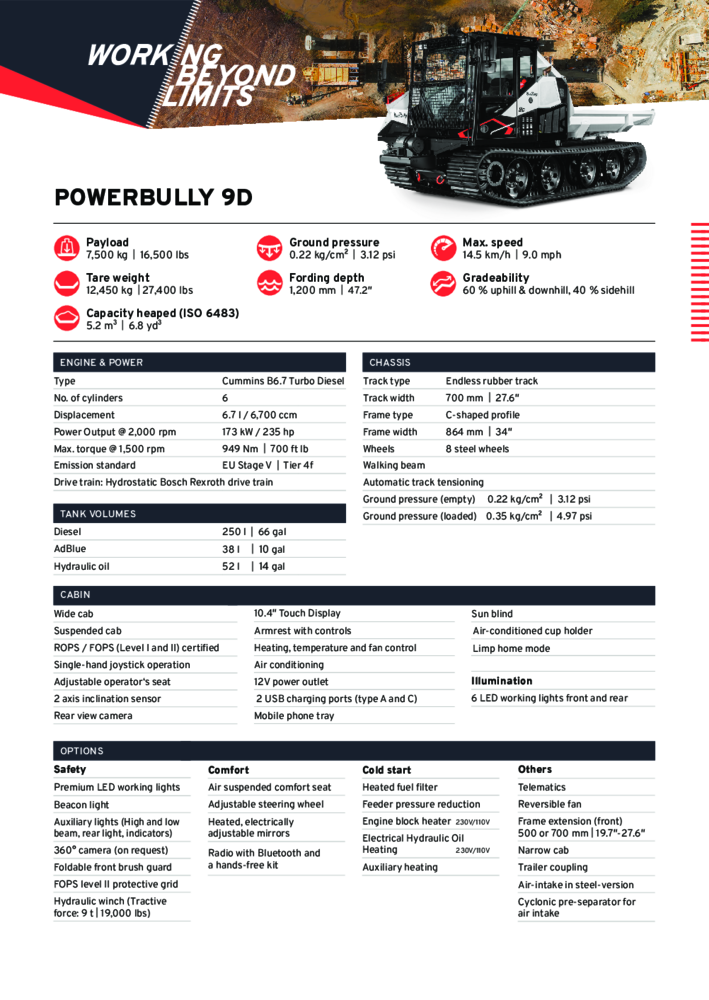

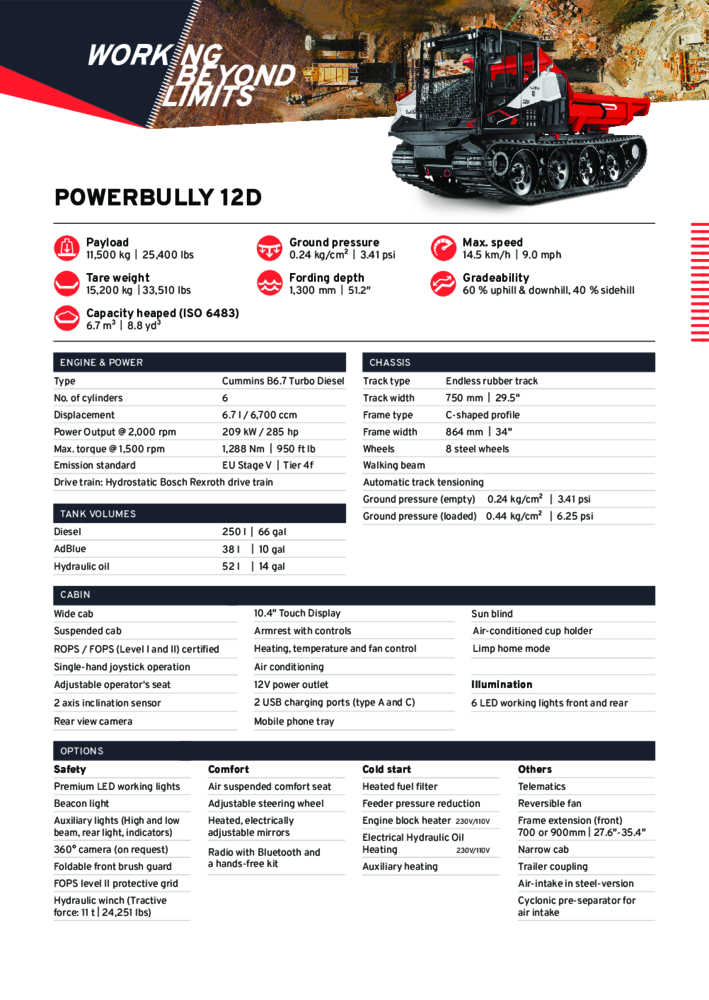

TECHNICAL Data

TECHNICAL SPECIFICATIONS   9D12D
Tare weight12,450 kg14,880 kg
Ground pressure empty / loaded0.22 kg/cm²  | 0.35 kg/cm²0.24 kg/cm² | 0.44 kg/cm²

DIMENSIONS
Overall length                    6,093 mm6,375 mm
Overall width 2,590 mm2,590 mm
Overall height2,857 mm3,005 mm
Fording depth 1,200 mm1,300 mm
Ground clearance 390 mm532 mm
Frame width864 mm864 mm

ENGINE & POWER
TypeCummins B6.7 Turbo DieselCummins B6.7 Turbo Diesel
No. of cylinders66
Displacement6.7 l / 6,700 ccm6.7 l / 6,700 ccm
Max. torque @ 1,500 rpm949 Nm1,288 Nm
Emission standardEU Stage V / Tier 4f EU Stage V / Tier 4f
Max. speed14.5 km/h14.5 km/h
TECHNICAL SPECIFICATIONS   9D12D
Tare weight27,400 lbs                          32,800 lbs
Ground pressure empty / loaded3.12 psi  | 4.97 psi 3.41 psi | 6.25 psi

DIMENSIONS
Overall length                    240′′250"
Overall width 102′′ 102′′
Overall height112′′ 118′′
Fording depth 47.2′′51.2′′
Ground clearance 15.4′′ 21′′
Frame width34′′ 34′′

ENGINE & POWER
TypeCummins B6.7 Turbo DieselCummins B6.7 Turbo Diesel
No. of cylinders66
Displacement6.7 l / 6,700 ccm6.7 l / 6,700 ccm
Max. torque @ 1,500 rpm700 ft lb950 ft lb
Emission standardEU Stage V / Tier 4f EU Stage V / Tier 4f
Max. speed9.0 mph9.0 mph

Showroom

PowerBully Dumper LED Lichtpaket

LED headlights

LED headlights (Total illumination 7.200 lm or 12.000 lm) on the front and rear provide optimal lighting of the workplace at night and in bad weather.

PowerBully Ketten
Traction & Grip

Rubber tracks

Due to the large ground contact of our endless rubber tracks, the PowerBully is your low ground pressure (PSI) track carrier that does not disturb the terrain you are working within, while also being able to drive over roads, without damage, when needed.

Telemetrie PowerBully

Adjustable mirrors

Objects next to the vehicle are detected thanks to the large windows, adjustable mirrors and the rear-view camera.

Telemetrie PowerBully

Safe workplace

When it comes to the safety of your crew, PowerBully knows no compromise. Large windows, a sloped engine hood and the 360° camera system provide good visibility, protecting people around the vehicle. All PowerBully cabs are ROPS/FOPS certified, and we offer an optional “wide operator‘s cab”, which provides maximum comfort for your operators.

PowerBully Wartung

Easy maintenance for more uptime

All service points areeasy to access. Cooling water and oil levels can be easily checked via inspection windows.

Fast & easy

Dumper

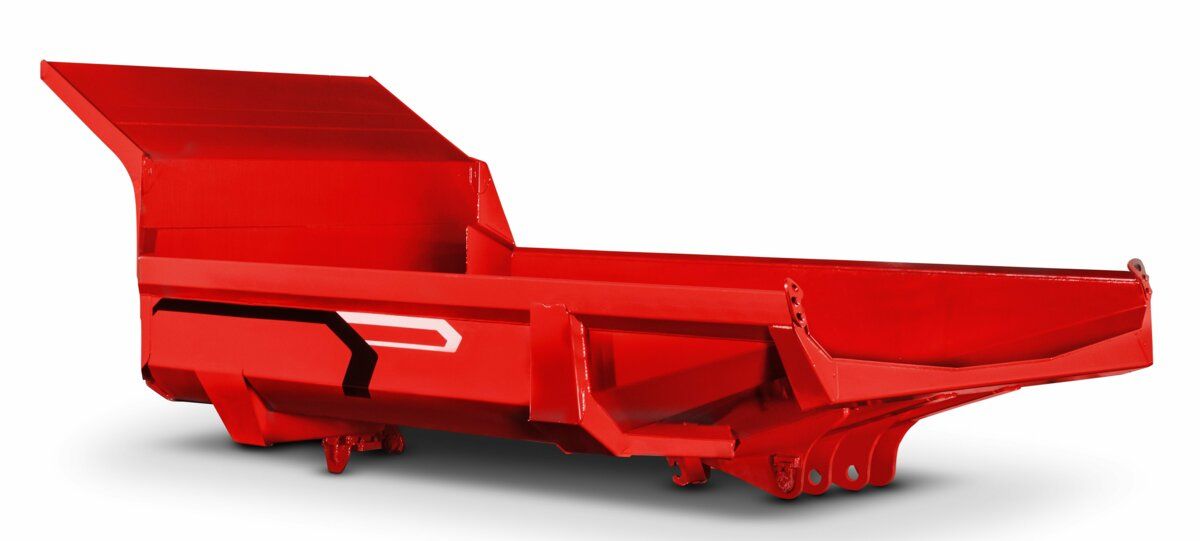

With loading volumes of 6.4 m³ (PowerBully 12D) and 5.0 m³ (PowerBully 9D), these tracked dump trucks offer plenty of space for transporting material and equipment.

Due to the ground clearance during tipping, the material can be unloaded effortlessly over high edges. Thanks to low tipping and tilting angles of over 60°, the dumper can be unloaded quickly. All dump bodies are made of Hardox material.

iTerminal with touch display

10.4′′ touch display for easy operation.

Armrest with controls

Most vehicle functions can be controlled with joystick on the armrest, and raising and lowering the tipping body via the one-hand joystick is also particularly easy: The body can be moved while driving. This significantly shortens the unloading process.

All-round visibility

Large windows and a sloped engine hood provide the operator with optimal visibility. The adjustable side mirrors and camera system (reversing and 360° camera) detect bystanders, objects and other vehicles, ensuring safe operation of carrier.

Steering wheel or joystick

You can choose whether you prefer to control your PowerBully via an adjustable steering wheel or an ergonomic one-hand joystick. Both variants enable millimeter-precise and safe navigation in rough terrain. Equip your vehicle with a joystick and benefit from an even larger field of vision in addition to easy control of carrier.

Powerbully knows no limitations

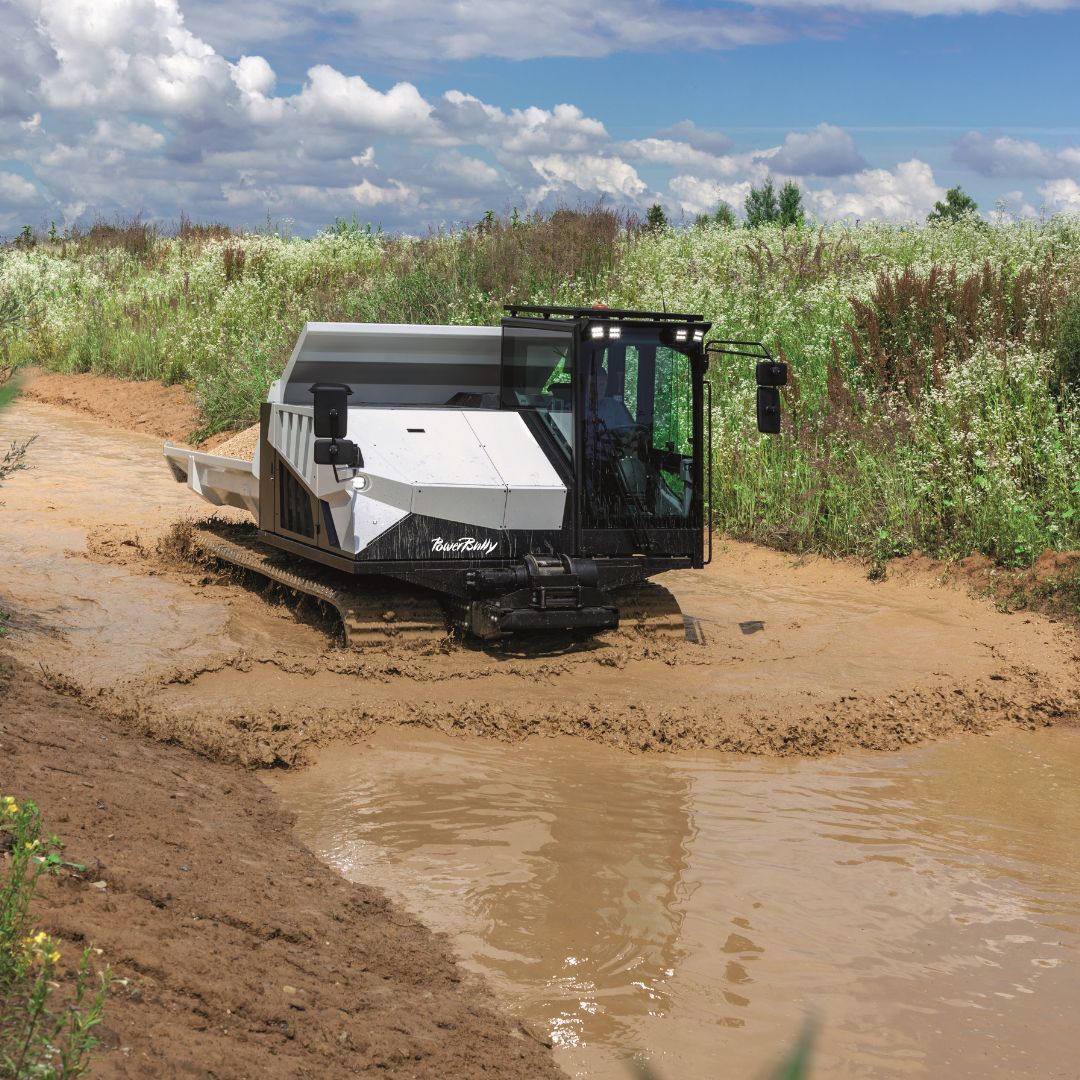

PowerBully masters uneven terrain, mud, swamps and obstacles with ease.

Power becomes efficiency
