CHASSIS

PowerBully track carrier

track carriers

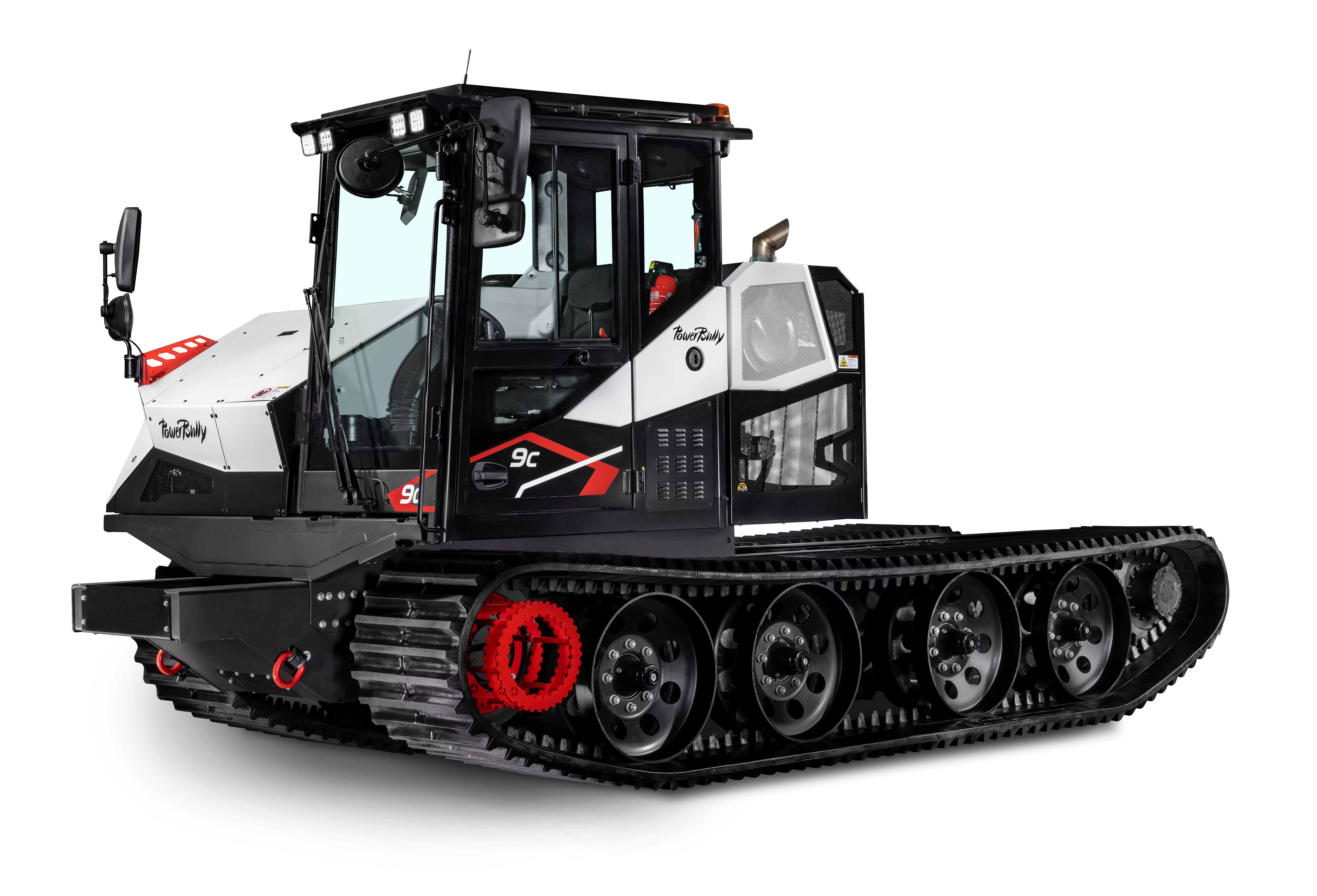

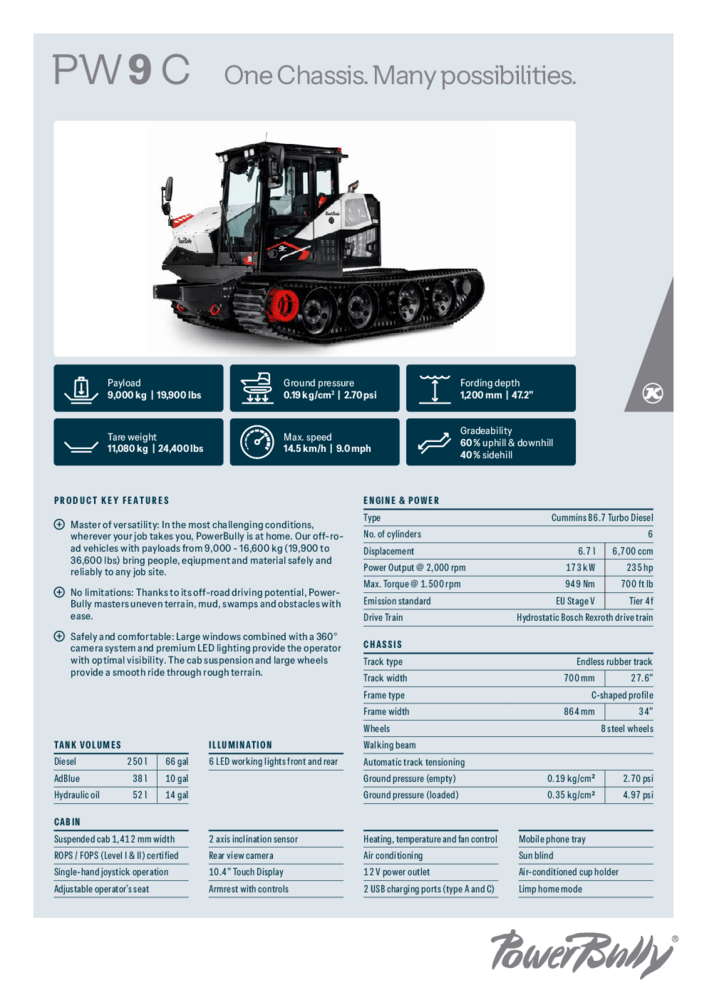

PowerBully 9C

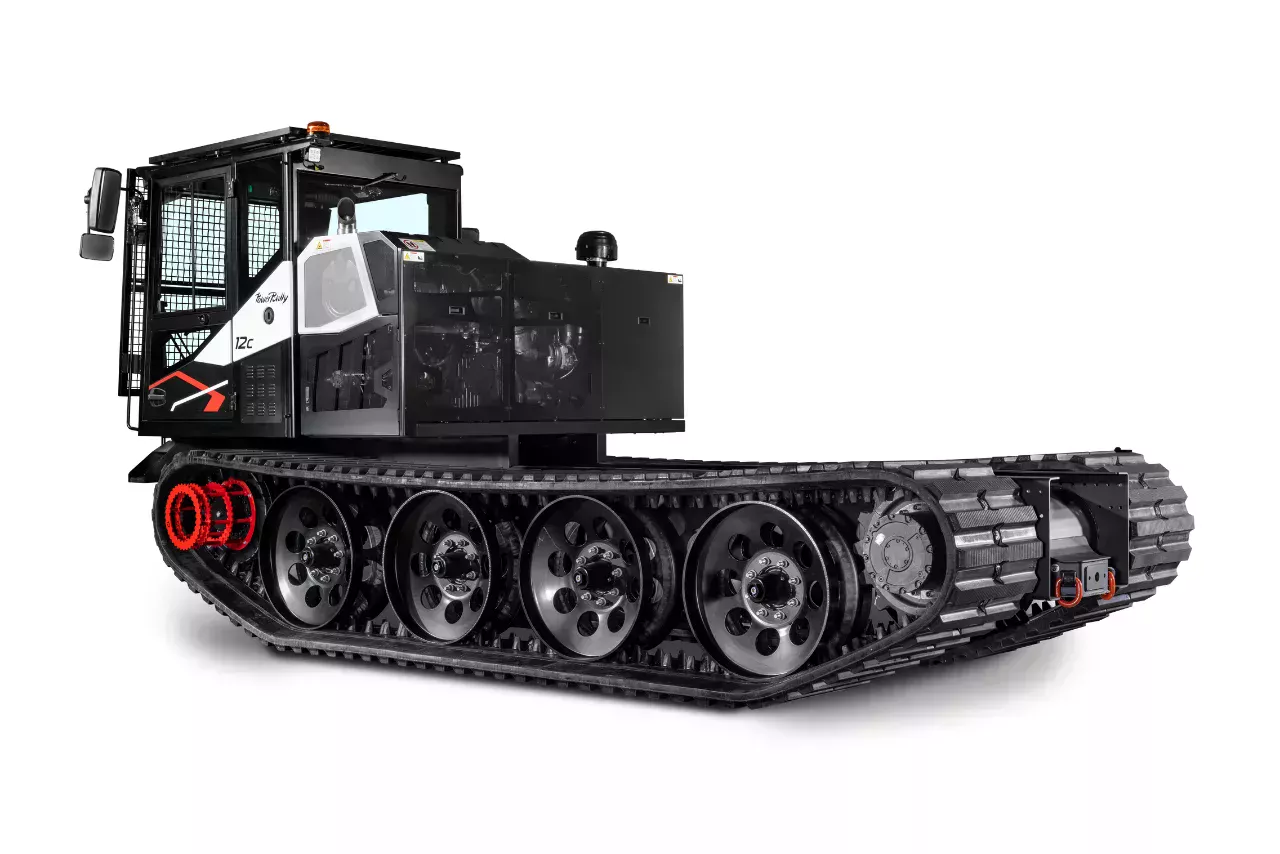

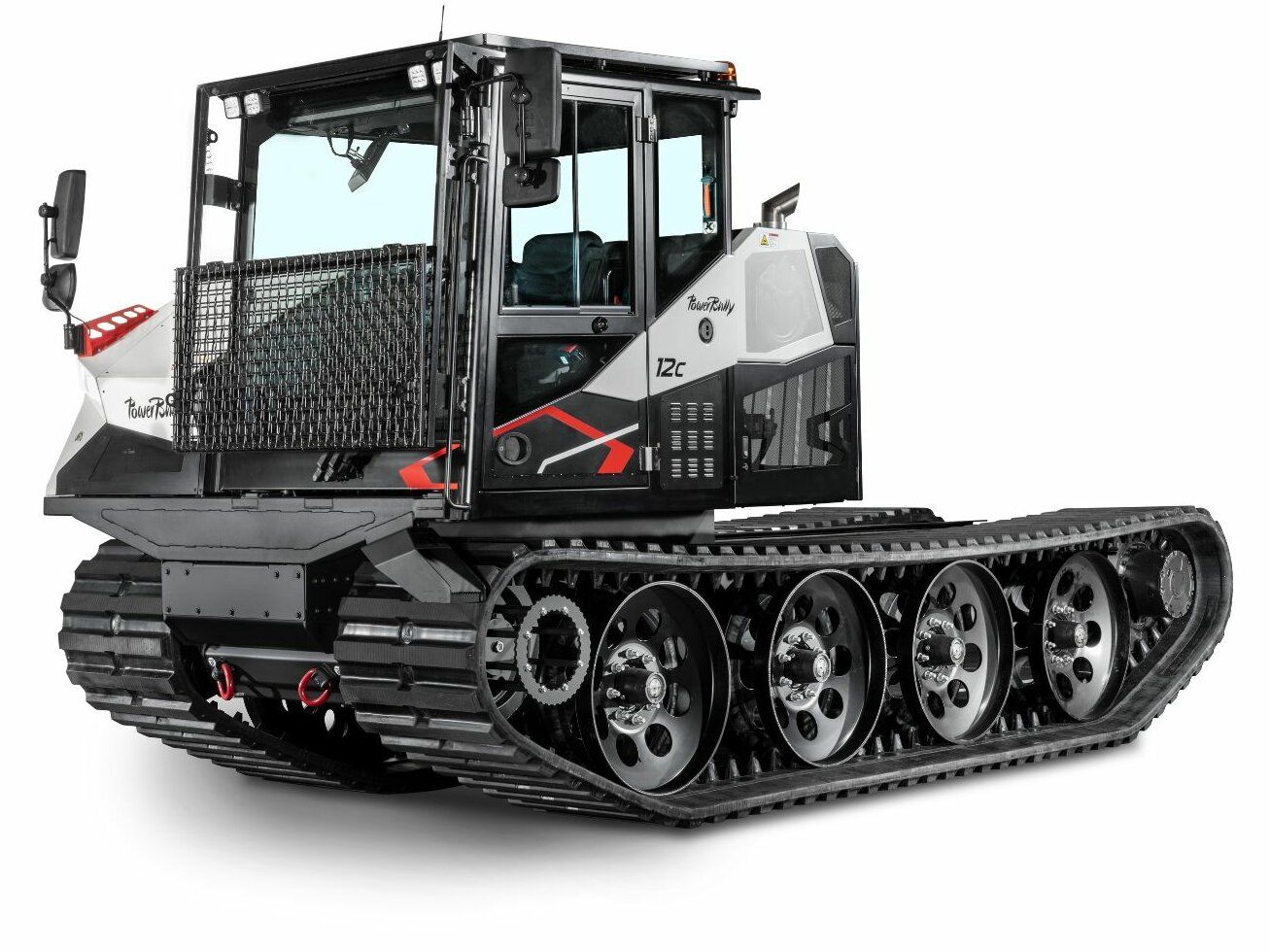

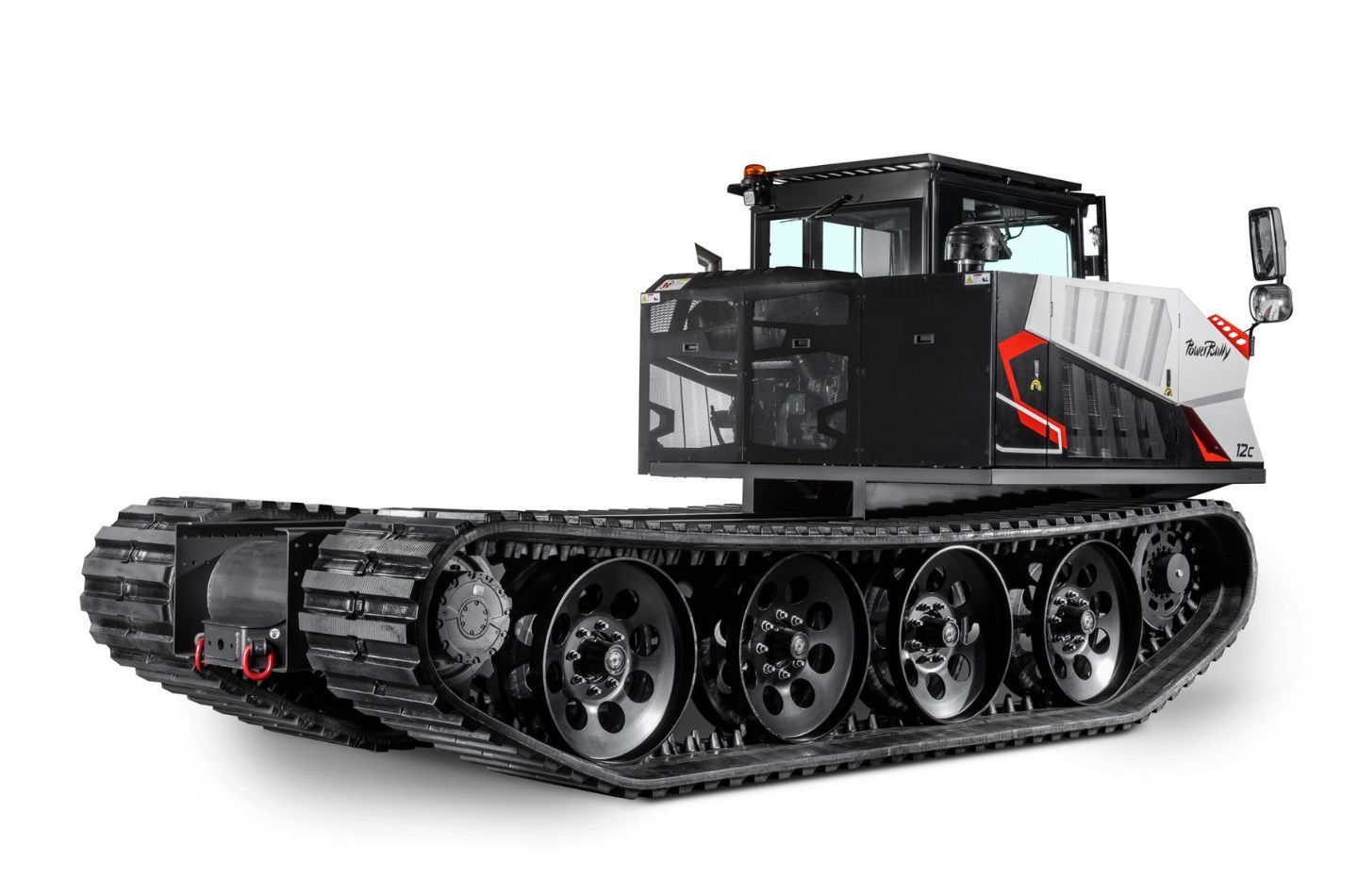

PowerBully 12C

PowerBully 18T

TECHNICAL Data

TECHNICAL SPECIFICATIONS9C12C18T
Tare weight11,080 kg13,140 kg13,200 kg
Ground pressure empty / loaded0.19 kg/cm²  | 0.35 kg/cm²0.22 kg/cm² | 0.44 kg/cm²0.17 kg/cm² | 0.39 kg/cm²

DIMENSIONS
Overall length                    5,646 mm6,036 mm8,228 mm
optional: frame extension front500 mm / 700 mm700 mm / 900 mm
optional: frame extension back700 mm / 900 mm900 mm / 1,100 mm
Overall width 2,590 mm2,590 mm3,077 mm
Overall height2,857 mm3,005 mm3,395 mm
Fording depth 1,200 mm1,300 mm1,400 mm
Ground clearance 390 mm532 mm600 mm
Frame width864 mm864 mm864 mm

ENGINE & POWER
TypeCummins B6.7 Turbo DieselCummins B6.7 Turbo DieselCummins B6.7 Turbo Diesel
No. of cylinders666
Displacement6.7 l / 6,700 ccm6.7 l / 6,700 ccm6.7 l / 6,700 ccm
Max. torque @ 1,500 rpm949 Nm1,288 Nm1,288 Nm
Emission standardEU Stage V / Tier 4fEU Stage V / Tier 4fEU Stage V / Tier 4f
Max. speed14.5 km/h14.5 km/h13.0 km/h
TECHNICAL SPECIFICATIONS9C         12C18T
Tare weight24,400 lbs         28,900 lbs29,100 lbs
Ground pressure empty / loaded 2.70 psi  | 4.97 psi 3.12 psi | 6.25 psi2.41 psi | 5.55 psi

DIMENSIONS
Overall length                    222′′237.6′′ 324′′
optional: frame extension front19.7'' / 27.6''27.6'' / 35.4''
optional: frame extension back 27.6'' / 35.4''35.4'' / 43.3''
Overall width 102′′ 102′′ 121′′
Overall height112′′ 118′′ 134′′
Fording depth 47.2′′51.2′′ 55′′
Ground clearance 15.4′′ 21′′ 24′′
Frame width34′′ 34′′ 34′′

ENGINE & POWER
TypeCummins B6.7 Turbo DieselCummins B6.7 Turbo DieselCummins B6.7 Turbo Diesel
No. of cylinders666
Displacement6.7 l / 6,700 ccm6.7 l / 6,700 ccm6.7 l / 6,700 ccm
Max. torque @ 1,500 rpm700 ft lb950 ft lb950 ft lb
Emission standardEU Stage V / Tier 4fEU Stage V / Tier 4fEU Stage V / Tier 4f
Max. speed9.0 mph9.0 mph8.1 mph

Showroom

PowerBully Dumper LED Lichtpaket

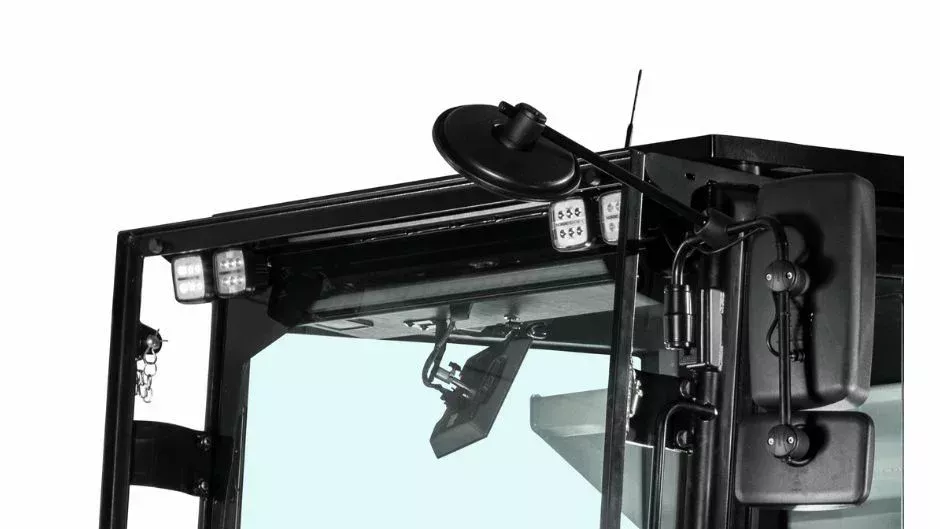

LED headlights

LED headlights (Total illumination 7.200 lm or 12.000 lm) on the front and rear provide optimal lighting of the workplace at night and in bad weather.

Telemetrie PowerBully

Adjustable mirrors

Objects next to the vehicle are detected thanks to the large windows, adjustable mirrors and the rearviewcamera.

Telemetrie PowerBully

Safe workplace

When it comes to the safety of your crew, PowerBully knows no compromise. Large windows, a sloped engine hood and the 360° camera system provide good visibility, protecting people around the vehicle. All PowerBully cabs are ROPS/FOPS certified, and we offer an optional "wide operator‘s cab", which provides maximum comfort for your operators.

PowerBully Ketten
Traction & grip

Rubber tracks

Due to the large ground contact of our endless rubber tracks, the PowerBully is your low ground pressure (PSI) track carrier that does not disturb the terrain you are working within, while also being able to drive over roads, without damage, when needed.

Der PowerBully 18T ist der innovativste Geräteträger am Utility-Markt.
PowerBully 18T QuickMountChassis

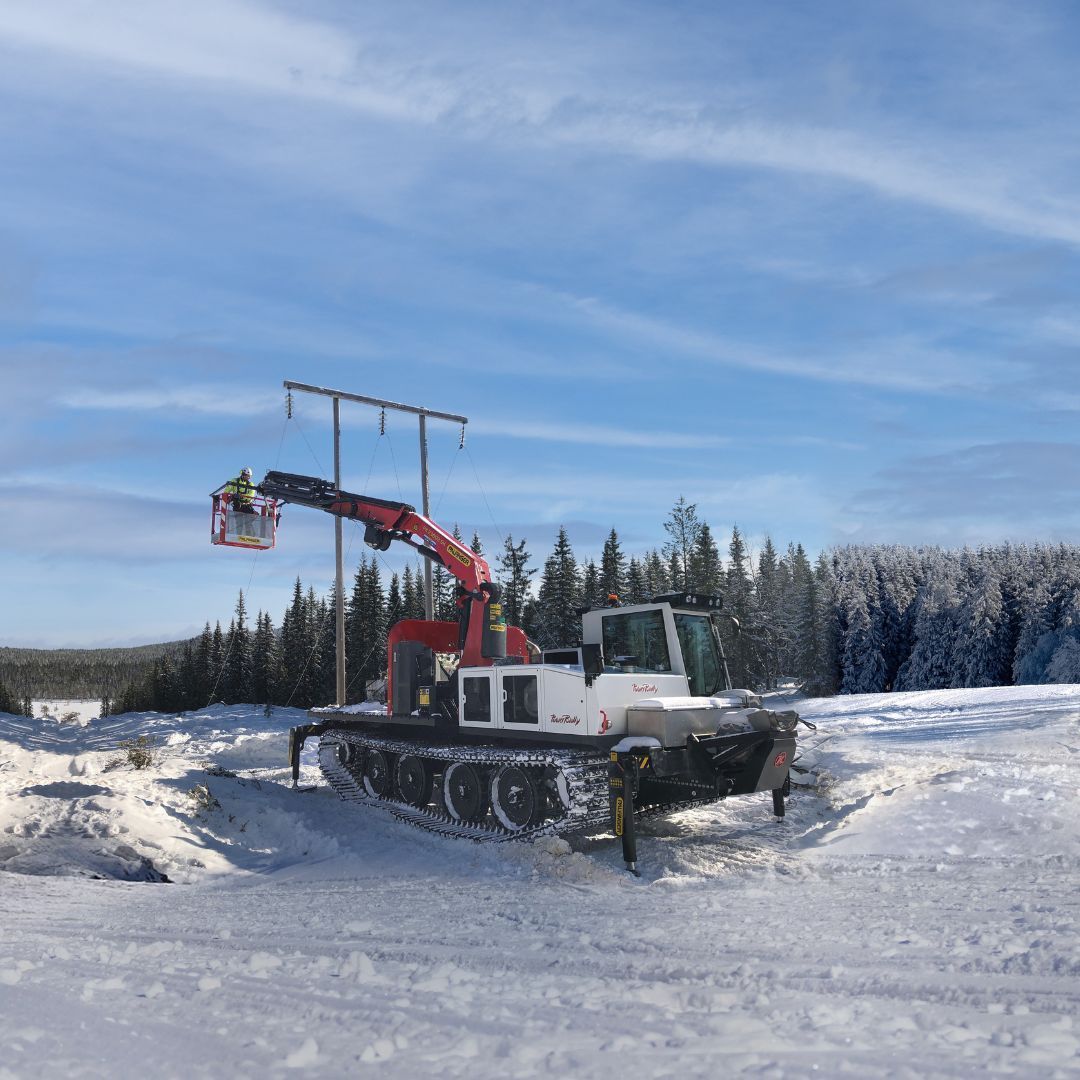

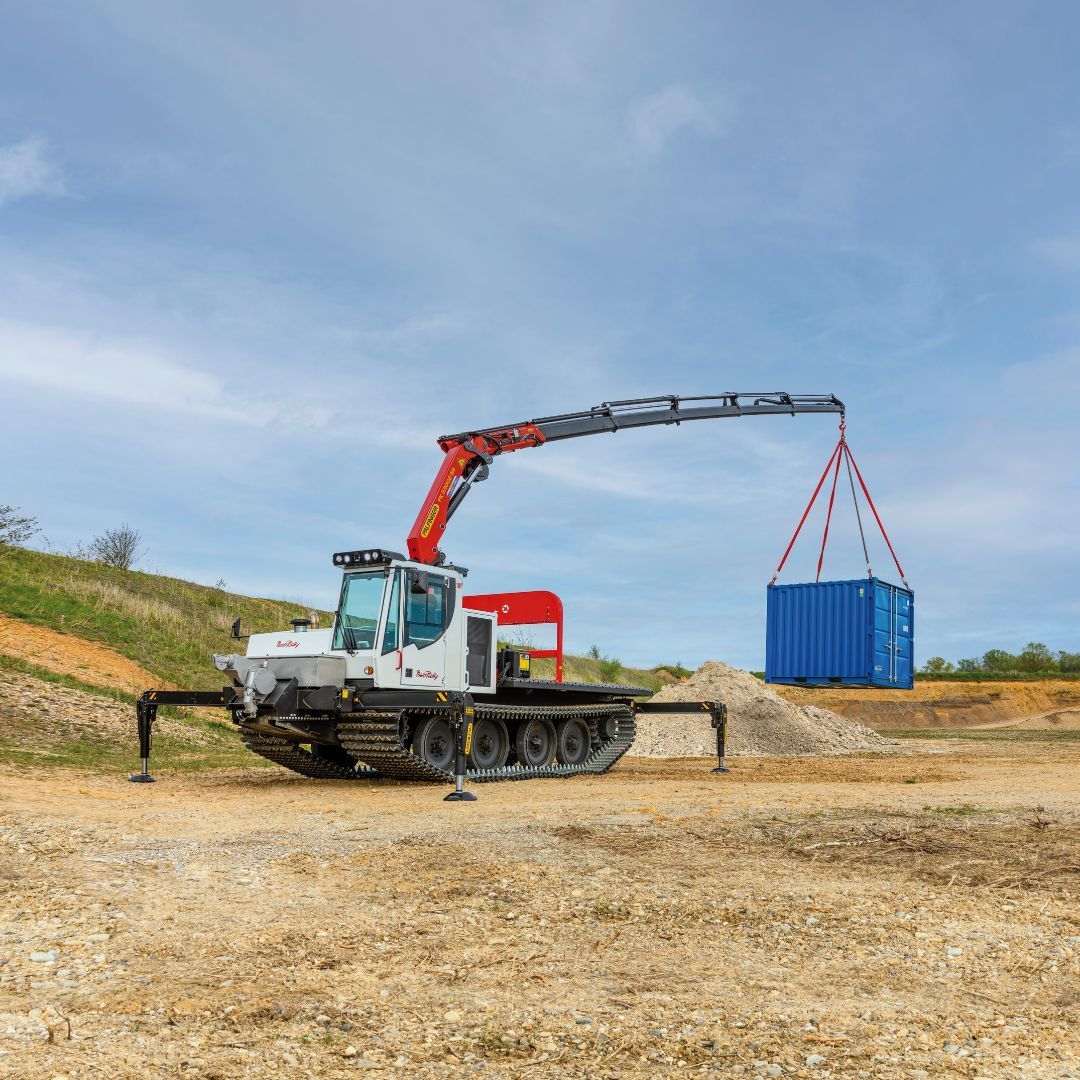

Attachments

The PowerBully track carriers are mobile platforms for derricks, aerials, cranes, drill rigs, material holding and almost anything else you can think of. Our standardized interfaces ensure that the upfitting process is both cost and time efficient.

PowerBully Wartung

Easy maintenance for more uptime

All service points are easy to access. Cooling water and oil levels can be easily checked via inspection windows.

iTerminal with touch display

10.4′′ touch display for easy operation.

Armrest with controls

Most vehicle functions can be controlled with joystick on the armrest, and raising and lowering the tipping body via the one-hand joystick is also particularly easy: The body can be moved while driving. This significantly shortens the unloading process.

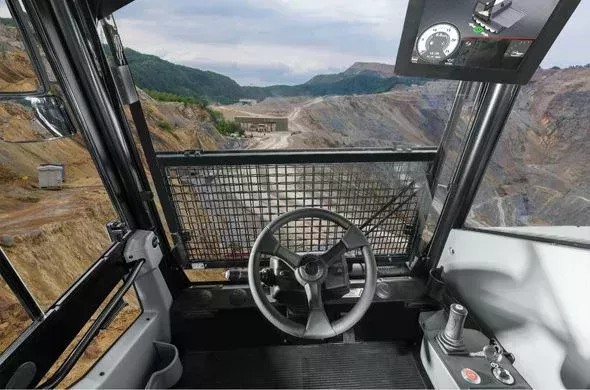

All-round visibility

Large windows and a sloped engine hood provide the operator with optimal visibility. The adjustable side mirrors and camera system (reversing and 360° camera) detect bystanders, objects and other vehicles, ensuring safe operation of carrier.

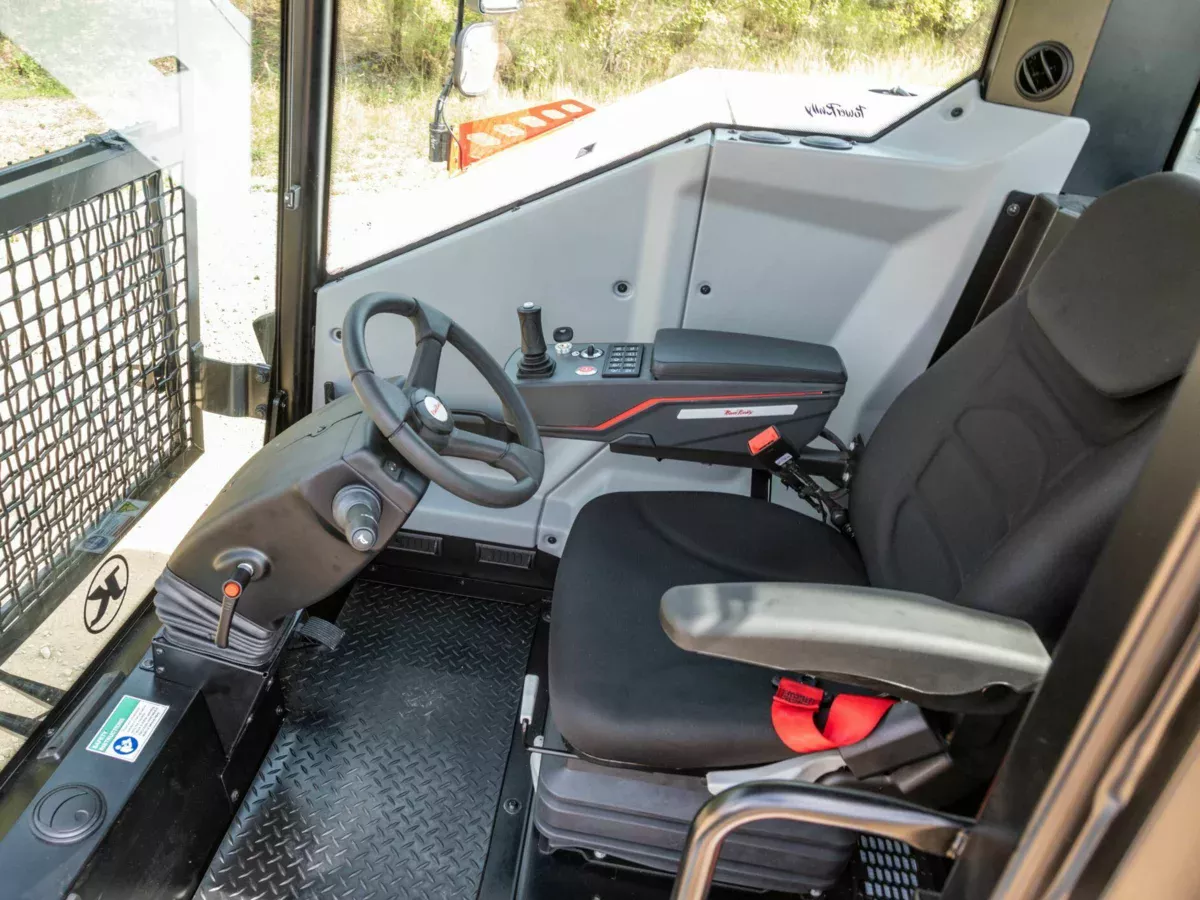

Steering wheel or joystick

You can choose whether you prefer to control your PowerBully via an adjustable steering wheel or an ergonomic one-hand joystick. Both variants enable millimeter-precise and safe navigation in rough terrain. Equip your vehicle with a joystick and benefit from an even larger field of vision in addition to easy control of carrier..

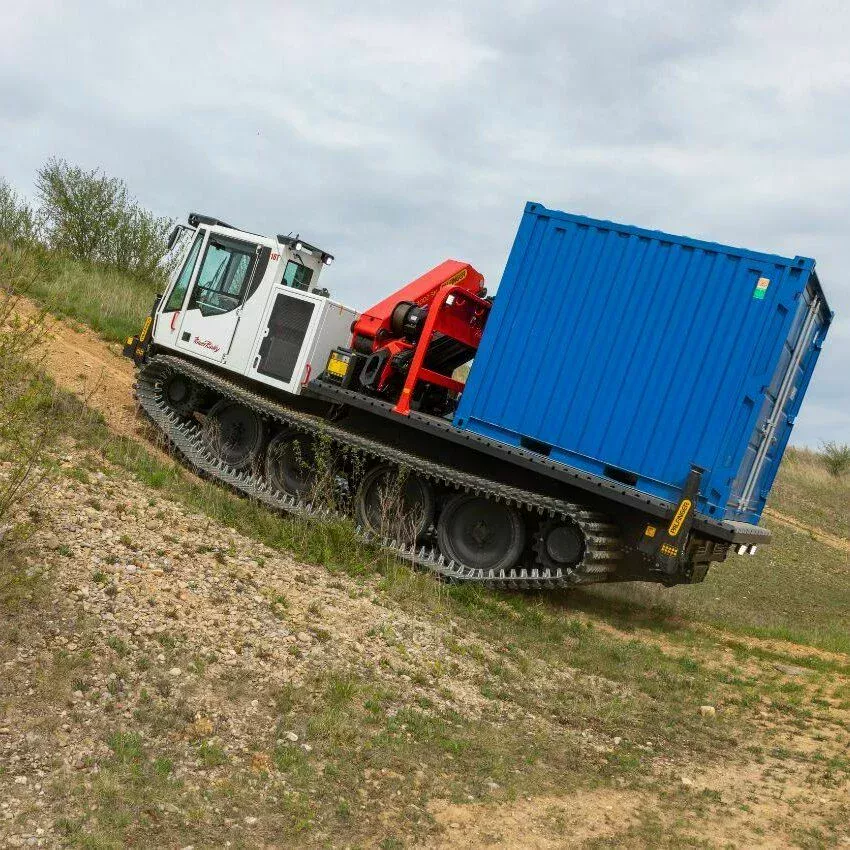

Powerbully knows no limitations

PowerBully masters uneven terrain, mud, swamps and obstacles with ease.

Power becomes efficiency
