Magirus FireBull

magirus firebull

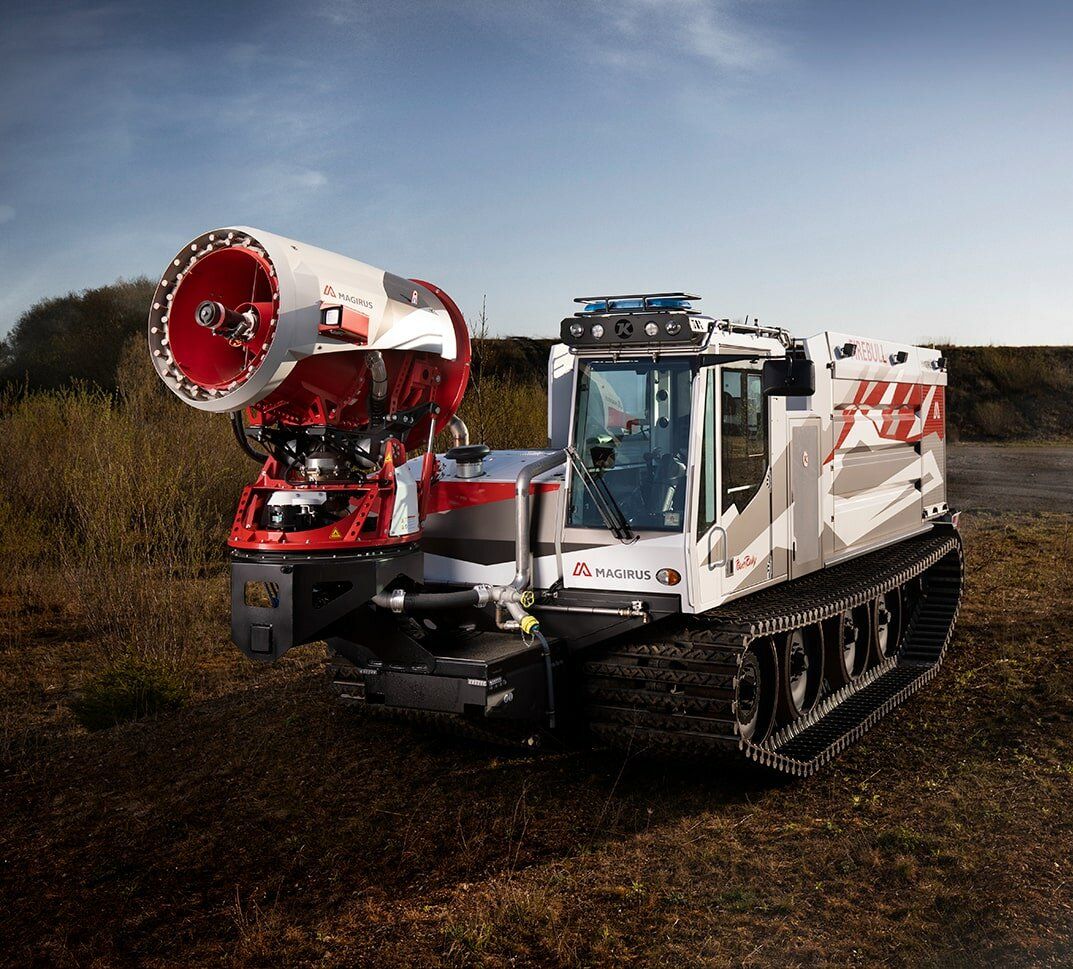

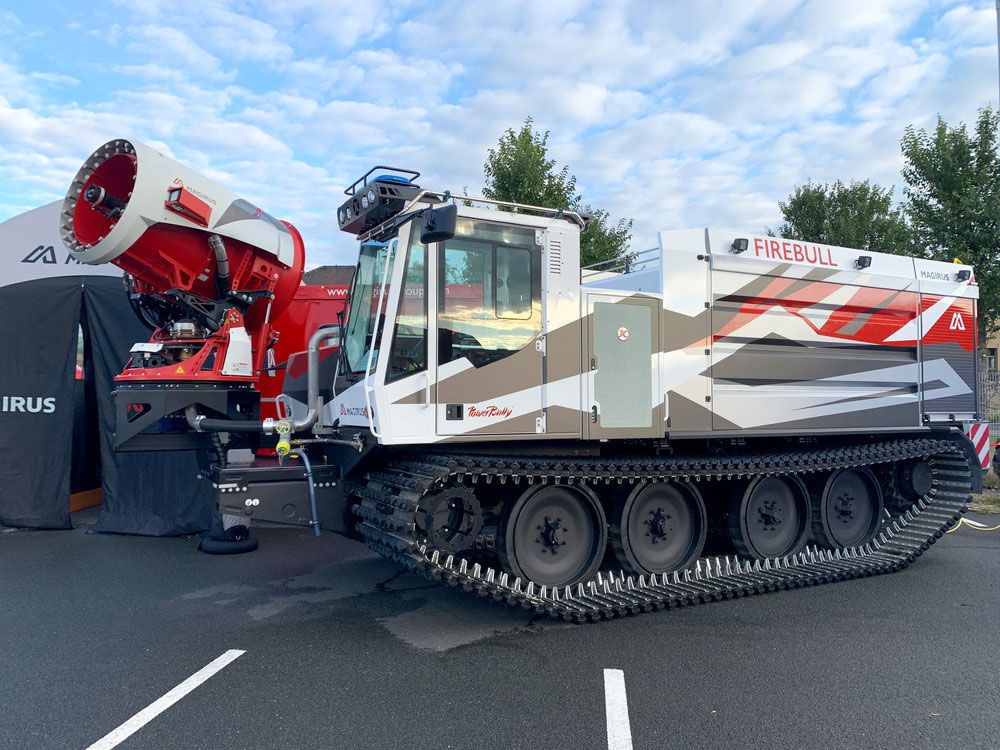

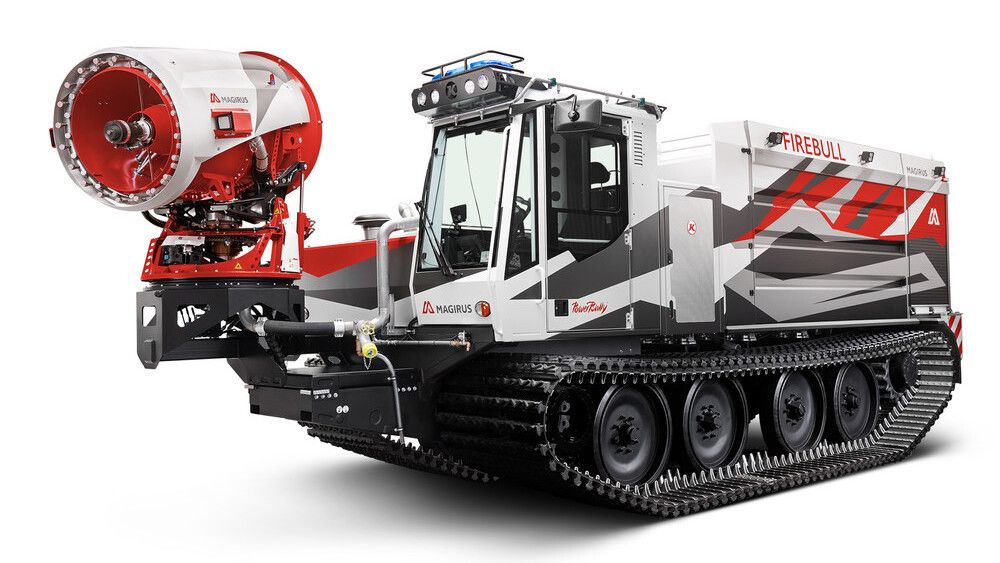

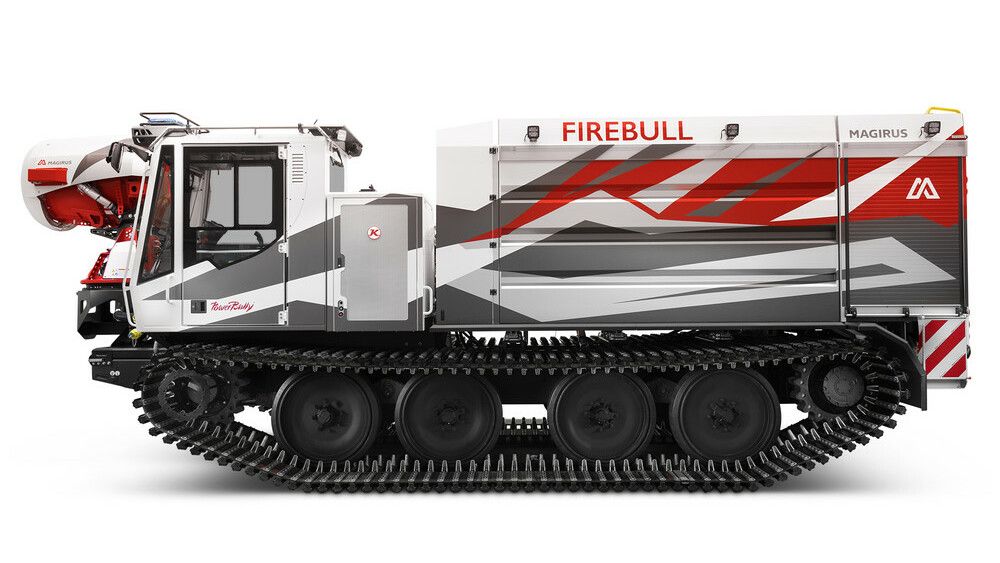

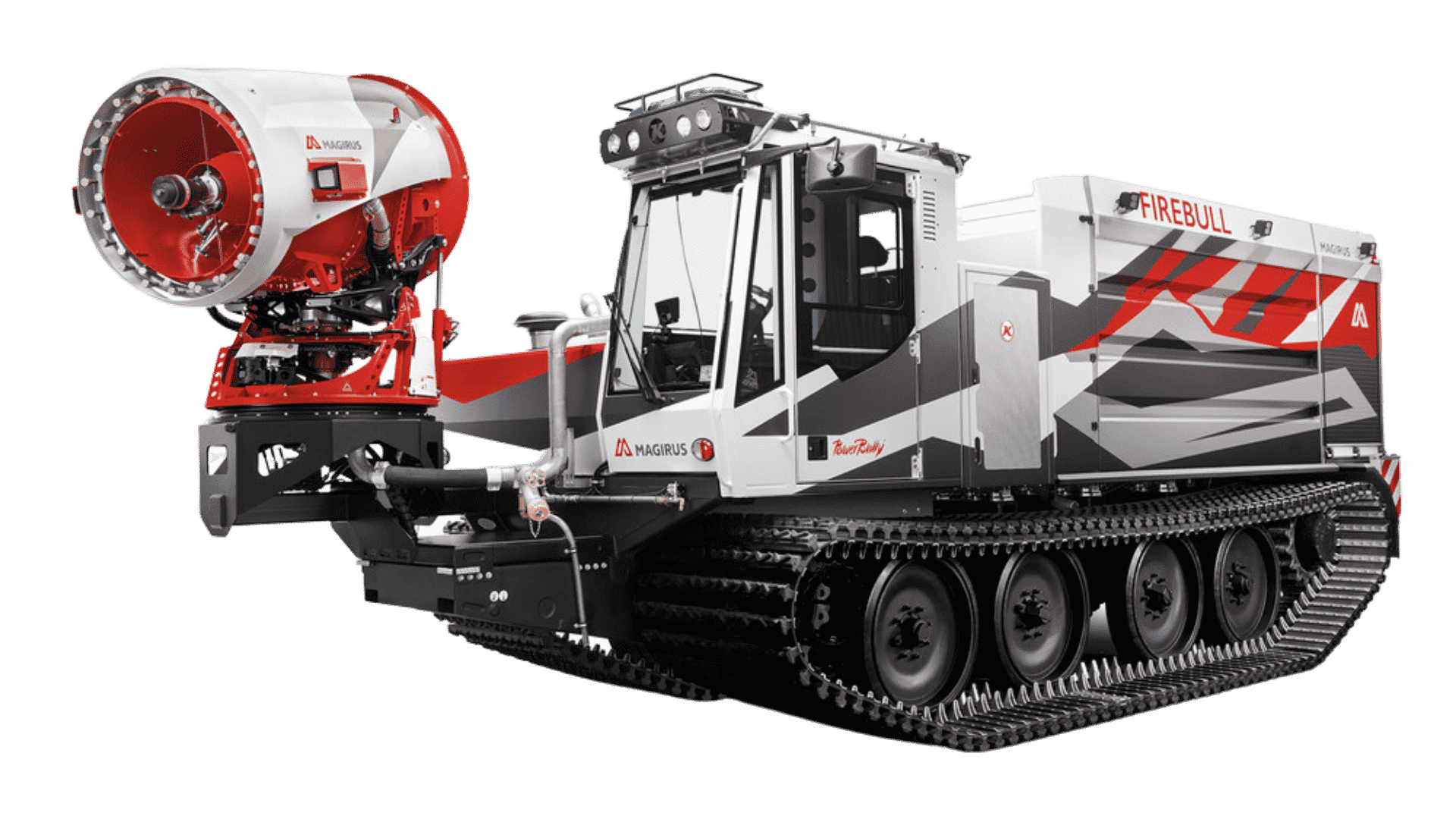

The Magirus FireBull is the world's first tracked firefighting vehicle ready for series production. Where wheeled vehicles reach their limits, the PowerBully 18T chassis provides the necessary off-road mobility - no matter what the surface. Thanks to its high payload with low ground pressure of just 0.300 kg/cm² (30 times less ground pressure than a 6x6 truck) and a fording depth of 1,400 mm, the Magirus FireBull is not only suitable for operations in rough terrain, but also for bog fires, earth fires, smoldering fires or in swampy areas.

the FireBull transports high payloads with minimal ground pressure over the most difficult terrain while ensuring maximum extinguishing effect and safety for the emergency services.
Marc Diening, CEO Magirus Group, about the new FireBull
Showroom
FireBull Kettenlöschfahrzeug
Magirus FireBull: X-Track
Gradability and stability
X-Track

The carrier's X-Track rubber track offers maximum climbing ability and high grip strength due to its special lug design.

High performance turbine
AirCore MFT35-H

Extinguishing turbine with a capacity of up to 3,500 liters per minute. The water mist technology enables efficient fire fighting and moistening of vegetation and has a high penetration depth. The water can be discharged on the fly in pump & roll mode. In addition to a C-port at the front, self-protection nozzles and heat protection on the underbody ensure crew safety. At the same time, the concept offers a wide range of options, such as larger tank volumes and turbine variants, to be optimally equipped for the respective conditions.

FireBull Kettenlöschfahrzeug
Safety and comfort
Operators' cab

The operators' double cabin is ROPS/FOPS certified. It features air conditioning, auxiliary heating and overpressure/filter system for cabin.

Magirus FireBull Löschtank
10,000 l volume
AluFire3

The extinguishing agent tank holds a total of 10,000 l (9,000 l water, 1,000 l foam agent). With a pump capacity of 3,000 l/min at 10 bar, large quantities of water can thus be delivered in a targeted manner. In addition, the superstructure has continuous interior, ambient and roof lighting for safe and uniform illumination of the scene of operation.

Das Cockpit des Geräteträgers PowerBully 18T
Safety and comfort
Panoramic view

The driver's cab provides the operator with an excellent panoramic view during operation.

PowerBully 18T: iTerminal
Easy operation
iTerminal

10-inch display with touch control. Clear and easy to use. All active vehicle parts are highlighted in color. With quick navigation option via icons.

Der Motor des kettengetriebenen Geräteträgers PowerBully 18T

Cummins B6.7 Engine

High torque at low engine speeds provides the necessary punch - while at the same time producing low noise and excellent fuel economy. The compact size of the Tier 4f/EU Stage V exhaust after treatment is key to maintaining a low vehicle profile.

Technical Data

Weight
Chassis (with X-Track)13,200 kg
Gross vehicle weight30,000 kg
Payload on platform16,600 kg
Overview Off-Road abilities
Uphill / Downhill31° (60%)
Sidehill21° (40%)
Turning radiuson the spot
Slope angle front / back19° / 22°
Fording depth1,400 mm
Ground pressure (at max. total weight)0.3 kg/cm²
Magirus FireBull am Steilhang
PowerBully 18T Zeichnung des Motors
Engine and hydraulics
TypeCummins B6.7 Turbo Diesel
No. of cylinders6
Displacement6.7 l / 6,700 ccm
Power (ECE)231 kW (310 hp) @ 2,200 rpm
Emission standardTier 4f / EU Stage 5
max. Torque1.288 Nm @ 1,500 rpm
Hydraulic drive trainBosch Rexroth
Tanks350 l Diesel, 36 l AdBlue,
40 l hydraulic oil
Characteristics
max. Speed10 km/h
Weight
Chassis (with X-Track)29,100 lbs
Gross vehicle weight66,140 lbs
Payload on platform36,600 lbs
Overview Off-Road abilities
Uphill / Downhill31° (60%)
Sidehill21° (40%)
Turning radius
Slope angle front / back19° / 22°
Fording depth55"
Ground pressure (at max. total weight)4.3 PSI
Magirus FireBull am Steilhang
PowerBully 18T Zeichnung des Motors
Engine and hydraulics
TypeCummins B6.7 Turbo Diesel
No. of cylinders6
Displacement6,700 ccm
Power (ECE)231 kW (310 hp) @ 2,200 rpm
Emission standardTier 4f / EU Stage 5
max. Torque1.288 Nm @ 1,500 rpm
Hydraulic drive trainBosch Rexroth
Tanks92.5 US gal fuel
10 US gal DEF
10.6 US gal hydrostatic tank
max. Speed8.1 mph
Features
PowerBully 18T Fahrerkabine von innen
Drivers' cabin

The cockpit of the PowerBully 18T contains numerous features that guarantee safety, comfort and efficiency in the workplace. From the iTerminal with touchscreen to the electronic steering device (steering wheel or joystick) - the operator's cab was developed according to ergonomic standards.

PowerBully 18T X-Track Kette im Detail
X-Track

The high-performance rubber track with lug design ensures maximum stability and one hundred percent grip - even on steep slopes and in difficult weather conditions.

PowerBully 18T - Leistungsstarkes Lichtpaket Detail

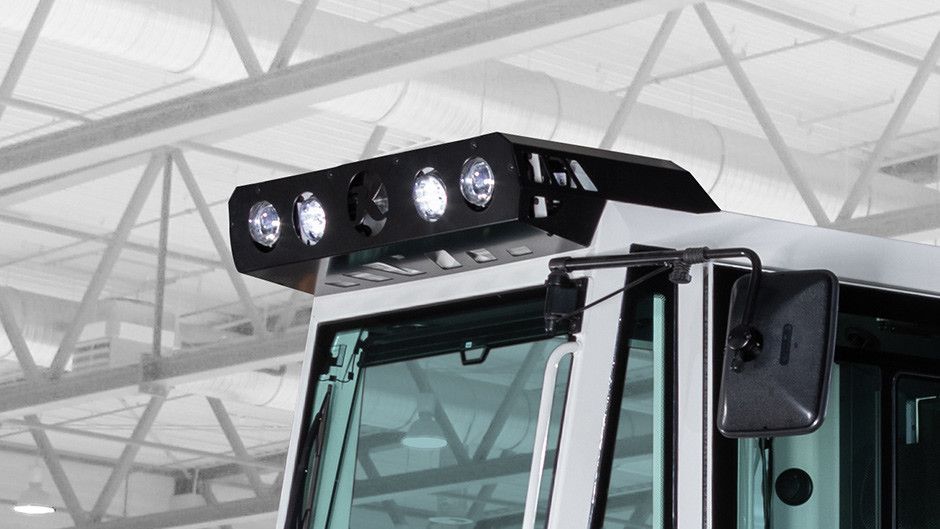

LED light package

The PowerBully 18T comes with a powerful front and rear light package for increased visibility and comfortable, safe nighttime work.

  • Rear view camera
  • Front headlights LED (working lights, low beam and high beam)
  • Air-suspended, heated seat
  • Trailer hitch (total towing weight max. 16,700 kg)
  • Combox

Options for cold weather

  • Feed pressure reduction
  • Cooling water heating
  • Hydraulic oil heating
  • Heated rear view mirror
  • Heated fuel filter
  • Heated windows
  • Parking heater
PowerBully 18T Fahrerkabine von innen
Extinguishing turbine

The AirCore MFT35-H extinguishing turbine is available with a capacity of up to 3,500 liters per minute. The water mist technology enables efficient firefighting and moistening of vegetation as well as high penetration depths into the vegetation. Water can be delivered while driving in pump & roll mode.

PowerBully 18T X-Track Kette im Detail
Extinguishing agent tank

The AluFire3 extinguishing agent tank holds 10,000 liters (9,000 liters of water, 1,000 liters of foam concentrate). The body includes a variable equipment compartment system for optimal adaptation to individual requirements, the Magirus HMI control unit for intuitive operation of the vehicle, and continuous ambient, roof and equipment compartment lighting for uniform, safe illumination.
